Insulator for Porcelain Fuse Cutout The cutout insulator is part of the porcelain fuse cutout. It is an elongated, skirted insulator typically formed of porcelain. It composes the electrical cutout together with the end fittings and elongated fuse. WINNING® supplies Porcelain Insulator for Drop-out Fuse Cutout from 12kV up to 36kV.

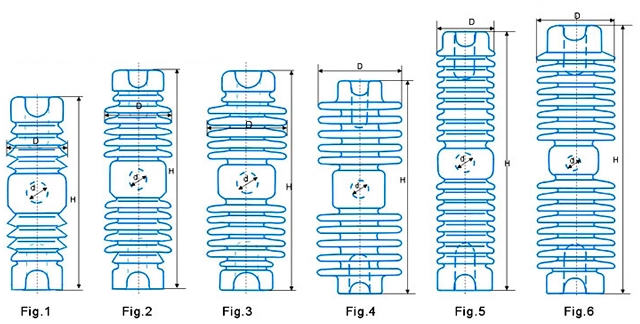

Cat. No. | Rated Voltage (kV) | Fig. No. | Leakage Distance (mm) | Cantilever Strength (kN) | Dimensions (mm) | Shed No. | Weight (kg) | H | D | d | 15101 | 15 | 1 | 220 | 18 | 287 | 87 | 32 | 8 | 2.8 | 15102 | 15 | 1 | 240 | 18 | 287 | 90 | 32 | 8 | 2.8 | 15103 | 15 | 1 | 255 | 20 | 287 | 105 | 32 | 12 | 3.2 | 25201 | 25 | 2 | 300 | 10/12.5 | 376 | 90 | 32 | 12 | 3.5 | 25202 | 25 | 2 | 340 | 10 | 376 | 96 | 35 | 12 | 3.7 | 25203 | 25 | 2 | 280 | 10 | 376 | 87 | 32 | 12 | 3.4 | 25204 | 25 | 2 | 360 | 10 | 376 | 102 | 35 | 12 | 3.9 | 25205 | 24/27 | 3 | 470 | 10 | 376 | 131 | 35 | 12 | 5.8 | 25206 | 24/27 | 4 | 460 | 10 | 376 | 129 | 32 | 10 | 6.0 | 25207 | 24/27 | 5 | 435 | 6.8/10 | 467 | 95 | 32 | 17 | 5.2 | 25208 | 24/27 | 4 | 450 | 10 | 376 | 127 | 32 | 10 | 5.8 | 25209 | 24/27 | 4 | 500 | 10 | 365 | 150 | 35 | 10 | 6.5 | 25210 | 24/27 | 4 | 550 | 10 | 375 | 155 | 35 | 10 | 6.9 | 35301 | 33/36 | 6 | 660 | 6.8/10 | 467 | 130 | 35 | 16 | 7.5 | 35302 | 33/36 | 6 | 660 | 6.8/10 | 467 | 121 | 32 | 16 | 7.5 |
Custom size/drawing of porcelain cutout insulators are available upon request.
|
